Web UI Manual Mode (Teleoperation)

The Manual Mode in the Web UI allows the user to operate the UGV remotely (teleoperate) by using sensors on the UGV to visualize the environment and by using a joystick to control the motion of the UGV.

Ensure that you have read Safety and are aware of possible hazards when using this product as well as the safety methods that can be used to stop the moving UGV.

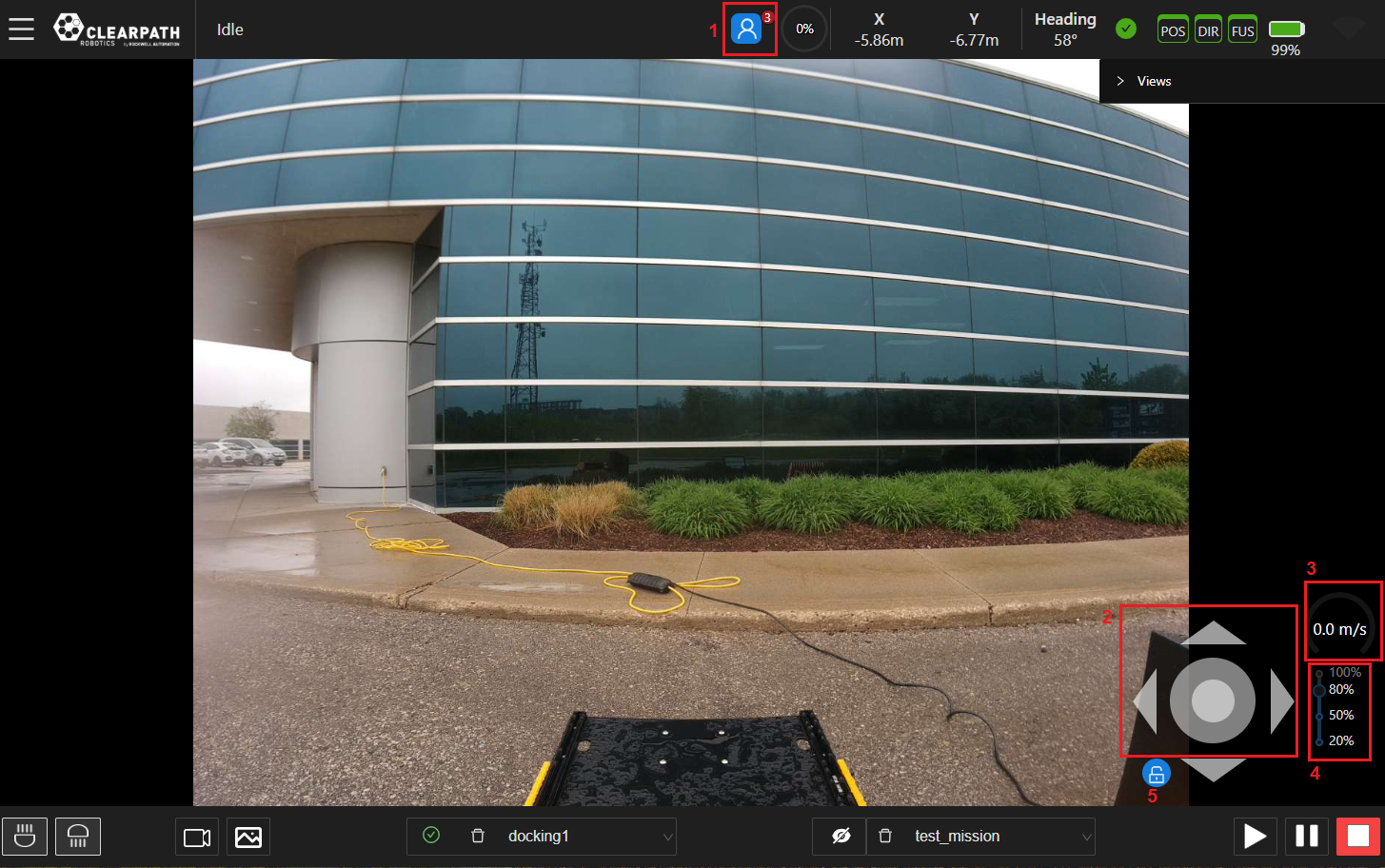

Teleoperation Components

1. Error/Warning Bar: A bar along the top of the page reporting the error or warning status of the Assisted Teleoperation feature.
2. User Connections: Shows the number of users connected to OutdoorNav.
3. Joystick: The joystick will allow the user to move the UGV manually from the UI. Motion can be sent to the UGV in 360° directions and the speed can be controlled by the distance of the joystick from its neutral position. Four fixed direction buttons are now present to move the UGV in purely forward/reverse directions or clockwise/counter-clockwise. Finally, we overlay an obstacle map on top of the joystick, representing obstacle distances from the UGV.
4. Speedometer: An indicator of the UGV's current linear speed.
5. Sensitivity Scale: A UGV-specific scale that controls the maximum allowable UGV velocities at each level. The default maximum linear velocity is 1.0 meters per second and the maximum angular velocity is 0.5 radians per second. These can be changed in the General Settings page. The scale levels are 100%, 80%, 50% and 20%, with the default set to 80%.
6. Teleop Assist Toggle: The "Teleop Assist" toggle can be used to enable/disable the Assisted Teleoperation feature.
7. UI Lockout: The lockout toggle that will prevent the Joystick from sending commands to the UGV. The purpose of this is to help prevent unwanted users from teloperating the UGV. This feature does not lock out the controller connected to the robot.
8. Controller Connection: If a controller is connected to the PC the UI will show this icon. The user can select the icon to disable/enable controller input.

Remote Controller Connection

If the user has a PS4 controller they can connect it to the UI directly. This will allow user drive the UGV the same way as the controller thats connected directly to the UGV. The controller will only function provided the UI window is in focus. Users can also see if other connections have a controller connected by expanding the User Connections icon as seen below.

Users connected to the UGV's UI Interface

Monitor Wireless Strength

While teleoperating the UGV, the user will notice that the delay between the time a command is sent and the time it is executed (and/or visible on the UI camera views) will increase as the distance increases. This effect will be further amplified by any obstacles between the UGV and the base (eg. walls, vehicles, mounds, etc.). It is important to monitor this delay an be cautious when driving the UGV with larger delay for risk of crashing into obstacles.
